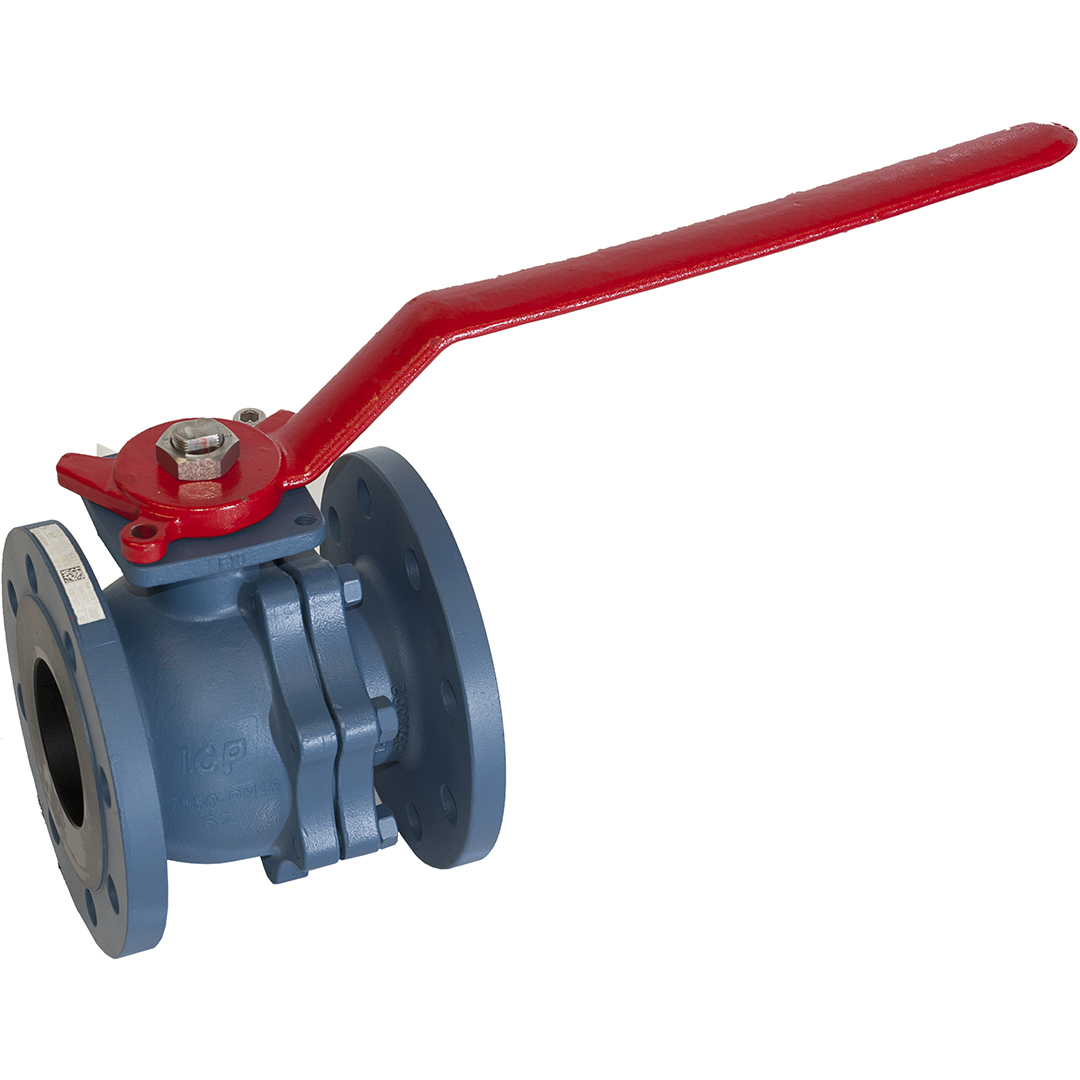

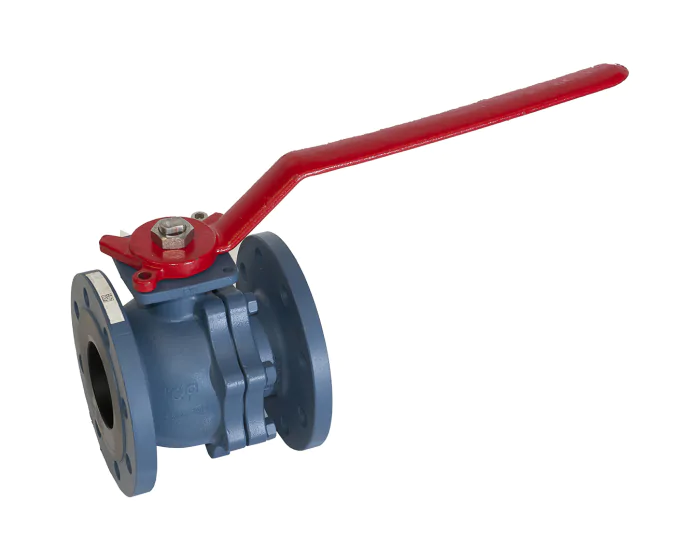

Carbon steel ball valve 756 2 piece body RF ANSI150 HT 1/2''
€80.86
(excl. btw)
The 756 series ball valve is a split-body model with Class 150 PN20 flanges, made of carbon steel with a TFM 1600 PTFE seat, fire safe and resistant to high temperatures. For chemical, petrochemical industries and hydraulic installations.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292 - ASME B16.34
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
EN face-to-face standard
EN 558 Series 3
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 3. ASME B16.10
Brand
ICP VALVES
Tightness test standard
EN 12266-1 Rate A. API 598
Stem sealing material
Graphite
Antistatic device
Yes
Steam
Yes
Degassing hole
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class CH
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316
Lockable
Yes
Square, star (mm)
MEP M10x7
ATEX compatible
Yes
Torque (Nm)
6
DN
DN15 - 1/2''
Face to Face (mm)
108.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
20.0
Body material
Carbon steel A216 WCB (1.0619)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
20
Connections
Flanged #150 PN20
Seats
TFM 1600
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
230
TS min (°C)
-29
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Main product colour
Black
Handle material
Ductile iron
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6553
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2''
756015
S1006774
€80.86
(excl. btw)
add to cart
6554
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4''
756020
S1006775
€88.21
(excl. btw)
add to cart
6555
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1''
756025
S1006776
€111.31
(excl. btw)
add to cart
6556
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2
756040
S1006777
€195.31
(excl. btw)
add to cart
6557
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2''
756050
S1006778
€241.51
(excl. btw)
add to cart
6558
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN65 - 2''1/2
756065
S1006779
€339.16
(excl. btw)
add to cart
6559
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3''
756080
S1006780
€453.61
(excl. btw)
add to cart
6560
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4''
756100
S1006781
€659.43
(excl. btw)
add to cart
6561
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6''
756150
S1006782
€1,496.31
(excl. btw)
add to cart
6562
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8''
756200
S1006783
€2,870.83
(excl. btw)
add to cart
